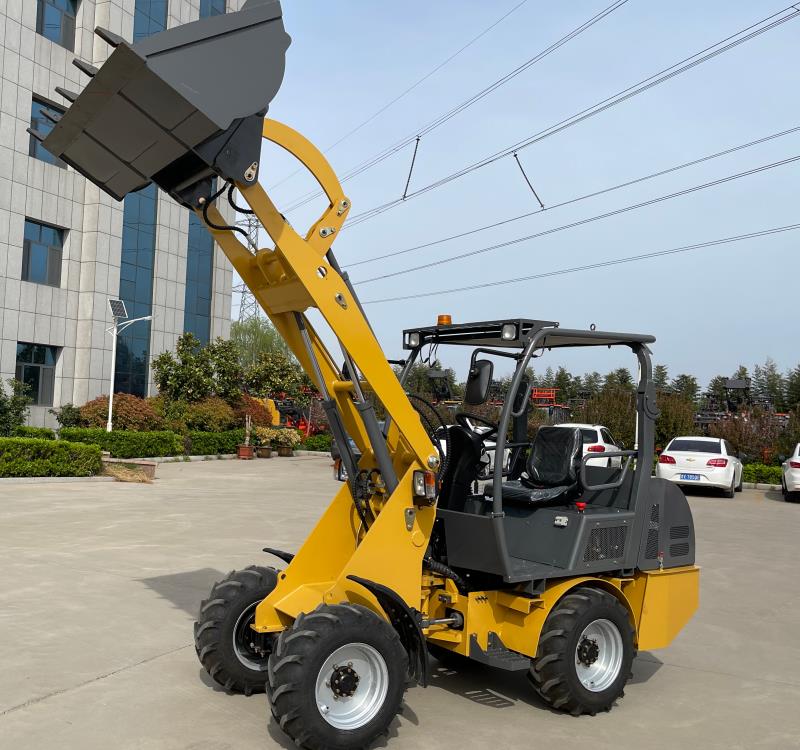

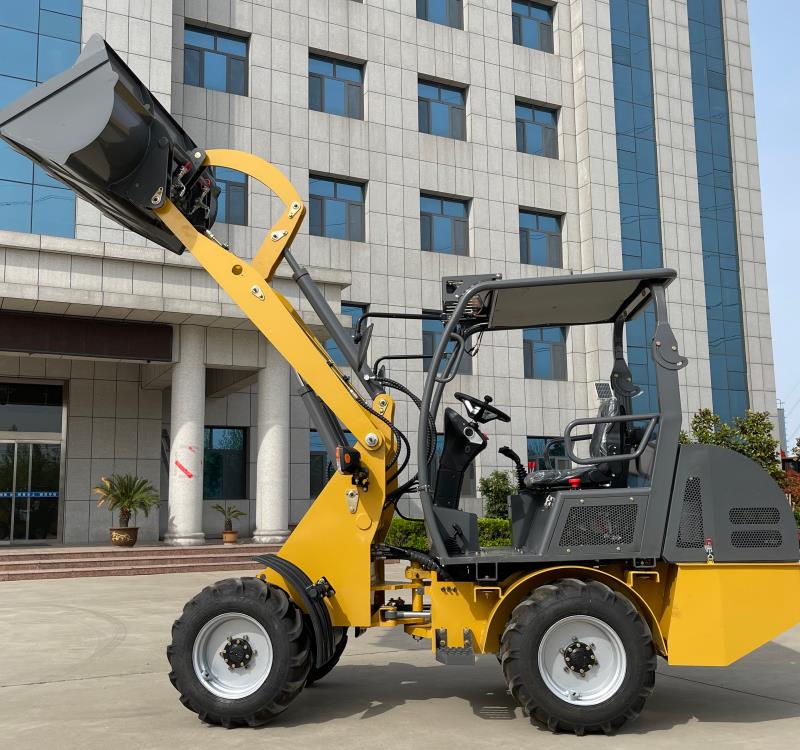

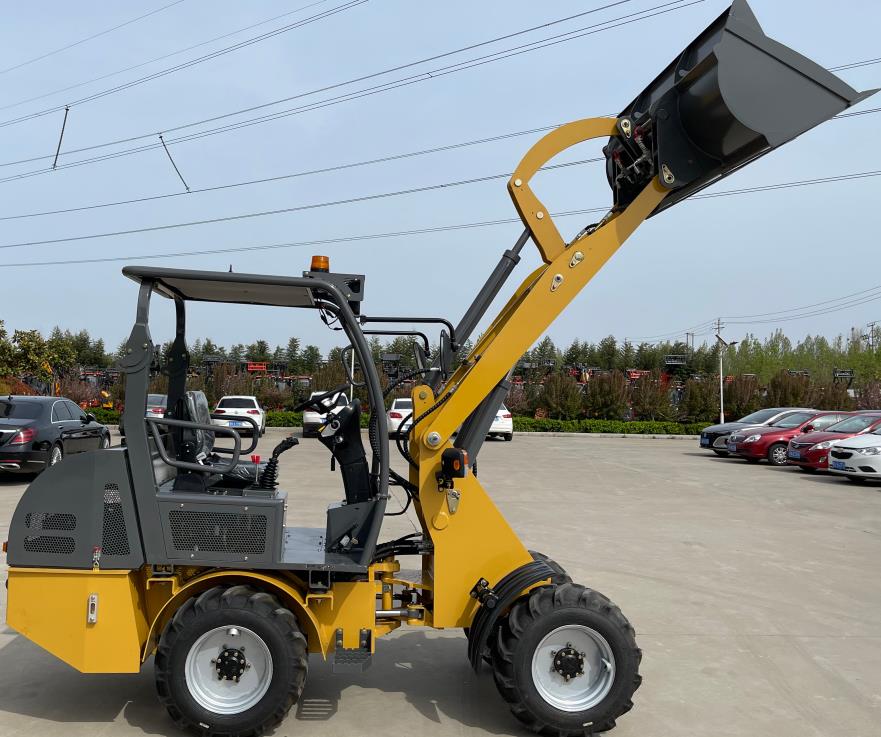

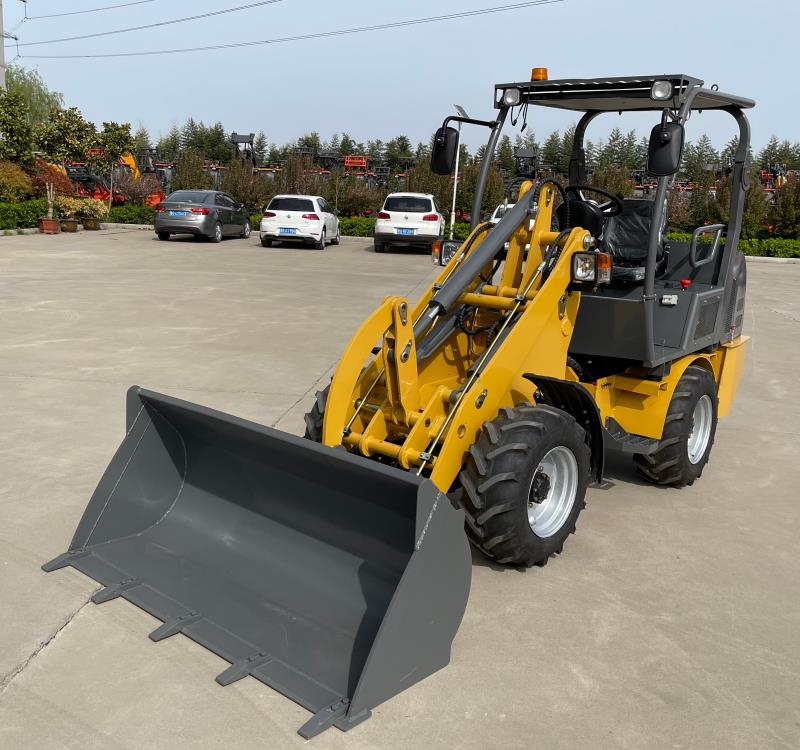

All Battery Electric Front End Loader For Sale
Short Turning Radius, Variable Amplitude Chassis, Boom Deflection, Suitable For Narrow Space Operations.
Multi-Purpose Such As: Excavation, Crushing, Bulldozing, Drilling, Grabbing
Product Details
Topwin Electric Compact Wheel Loader Fast Operation And Excessive Efficiency
Good Maneuverability
Simple And Transportable Operation
490 Engine :Powerful ,Low Emission ,Low Gasoline Consumption,Low Noise ,Moneysaving.
Extremely Robust Articulation Joint Versatile Due To Large Vary Of Equipment And Non-Obligatory Equipment.

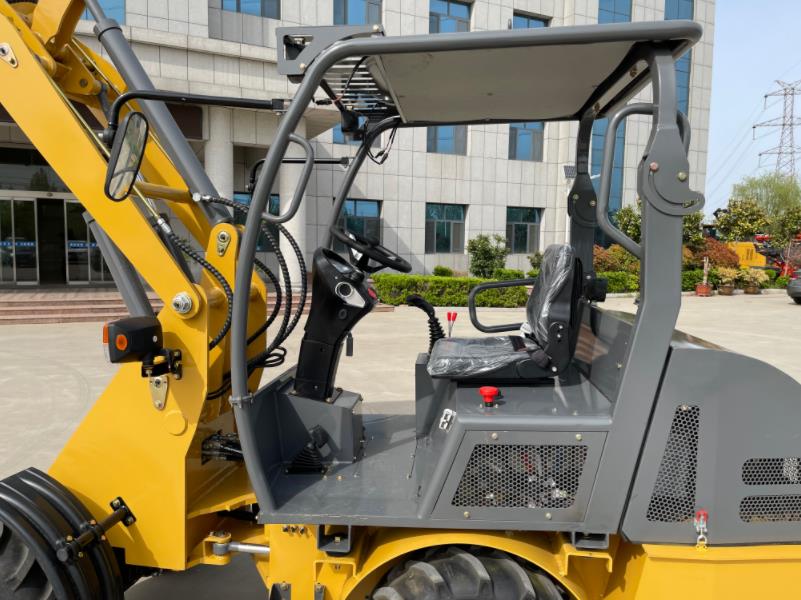

Cabin Can Roll, So It Is Handy To Restore
| LE10 Electric wheel loader specification | |||
| Performance | Rated Load（t) | 1 | |
| Bucket rated capacity（m³) | 0.4 | ||
| Dumping height（mm)（at 45°） | 2200 | ||
| Lifting Height（mm) | 3400 | ||
| Dumping Reach（mm) | 650 | ||
| Max. Lifting weight（kg） | 1000 | ||
| Max. Excavation Force（kg) | 1100 | ||
| Max. Grade ability (°) | 18 | ||
| Max. Turning Angel (°) | 29±1 | ||
| Dimensions. &.Weight | Overall length（Bucket on Ground position）(mm) | 4460 | |
| Bucket width（overall width）(mm) | 1600 | ||
| Overall Height (mm) | 2230 | ||
| Wheel base (mm) | 1100 | ||
| Min Ground Clearance(mm) | 210 | ||
| Net Weight（kg) | 2340 | ||
| Battery | Battery Model No. | 3-EVF-200A | |
| Rated capacity（3hr) | 200Ah | ||
| No.of battery groups | 12 | ||
| Rated Voltage（v） | 72 | ||
| Working hours（h） | 4 | ||
| Transmission System | Hydraulic System | Motor No. | YQP5-72AF-48P |
| Voltage（v） | 72 | ||
| Power（W） | 5000 | ||
| Displacement（ml/r) | 14 | ||
| Tyres | Type | 29*12.50-15 | |
| Working pressure（mpa) | 0.3 | ||
| Qty | 4 | ||
| Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
| System Pressure（mpa) | 16 | ||
| Type of Steering Pump | Gear Pump | ||
| Steering Cylinder Bore（mm) | Ø75 | ||
| Qty（pc） | 2 | ||
| Braking System | Service Brake | Drum Brake | |
| Brake Drum（mm) | 240 | ||
| Parking Brake | Drum Brake | ||
| Dumping Cylinder-Bore（mm) | Ø80 | ||
| Lifting Cylinder-Bore（mm) | Ø90 | ||
| Oil Capacity | Hydraulic Oil Tank（L) | 54 | |
| Brake Fluid（L) | 0.8 | ||
Details

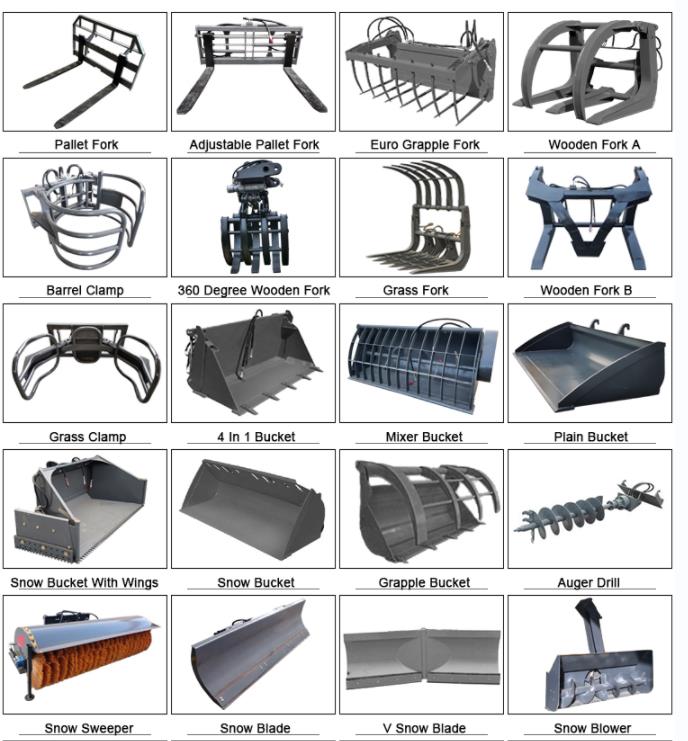

Attachments For Mini Wheel Loader
| LE10 Electric wheel loader specification | |||
| Performance | Rated Load（t) | 1 | |
| Bucket rated capacity（m³) | 0.4 | ||
| Dumping height（mm)（at 45°） | 2200 | ||
| Lifting Height（mm) | 3400 | ||
| Dumping Reach（mm) | 650 | ||
| Max. Lifting weight（kg） | 1000 | ||
| Max. Excavation Force（kg) | 1100 | ||
| Max. Grade ability (°) | 18 | ||
| Max. Turning Angel (°) | 29±1 | ||
| Dimensions. &.Weight | Overall length（Bucket on Ground position）(mm) | 4460 | |
| Bucket width（overall width）(mm) | 1600 | ||
| Overall Height (mm) | 2230 | ||
| Wheel base (mm) | 1100 | ||
| Min Ground Clearance(mm) | 210 | ||
| Net Weight（kg) | 2340 | ||
| Battery | Battery Model No. | 3-EVF-200A | |
| Rated capacity（3hr) | 200Ah | ||
| No.of battery groups | 12 | ||
| Rated Voltage（v） | 72 | ||
| Working hours（h） | 4 | ||
| Transmission System | Hydraulic System | Motor No. | YQP5-72AF-48P |
| Voltage（v） | 72 | ||
| Power（W） | 5000 | ||
| Displacement（ml/r) | 14 | ||
| Tyres | Type | 29*12.50-15 | |
| Working pressure（mpa) | 0.3 | ||
| Qty | 4 | ||
| Steering System | Type of Steering Hydraulic System | Full Hydraulic Steering System | |
| System Pressure（mpa) | 16 | ||
| Type of Steering Pump | Gear Pump | ||
| Steering Cylinder Bore（mm) | Ø75 | ||
| Qty（pc） | 2 | ||
| Braking System | Service Brake | Drum Brake | |
| Brake Drum（mm) | 240 | ||
| Parking Brake | Drum Brake | ||
| Dumping Cylinder-Bore（mm) | Ø80 | ||
| Lifting Cylinder-Bore（mm) | Ø90 | ||
| Oil Capacity | Hydraulic Oil Tank（L) | 54 | |
| Brake Fluid（L) | 0.8 | ||
