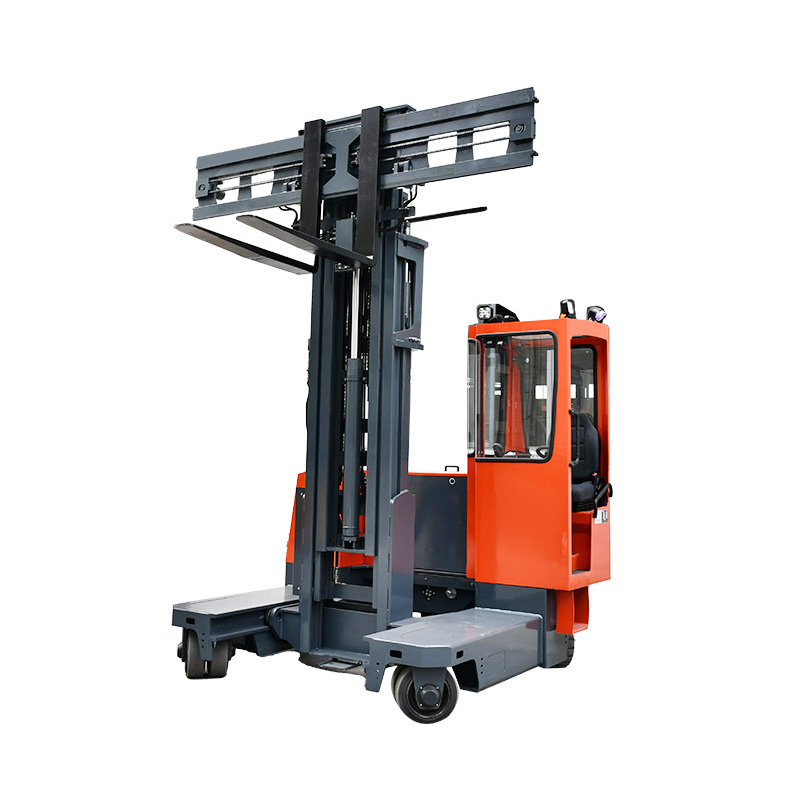

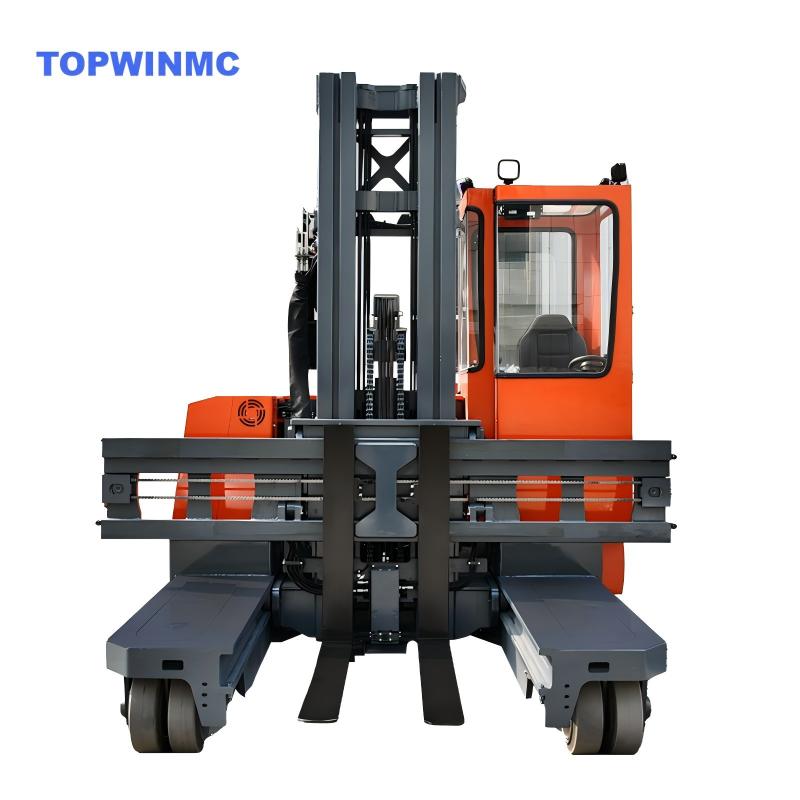

Wide Body Multi-directional Forklift 3.5-5.0 Tons
Brand : TOPWINMC
Model: 35/40/45/50
Operation Type: Seated
Load Capacity: 3500/4000/4500/5000kg
Max. Lifting Height: 8000mm
The TOPWINMC is the perfect solution for handling pallets and long goods. A genuine two-in-one lift truck, it combines the benefits of a forklift and sideloader. The quiet and environmentally friendly electric drive and innovative 360° HX steering enable smooth changes in direction without interrupting the flow, making the TOPWINMC extremely manoeuvrable, efficient and user-friendly as a multi directional forklift.
Model | E4W30 | |
Power Type | Battery | |
Operation Type | Seated | |
Service weight(incl. battery) | kg | 5480 |
Rated Capacity | Q(kg) | 3000 |
Load Center | C(mm) | 600 |
Lifting height | h3(mm) | 3000 |
Forks size | l/e/s(mm) | 1200/150/50 |
Front Overhang | x(mm) | 305 |
Mast ground clearance | ml(mm) | 150 |
Max. climbing ability | %(tanθ ) | 8/10 |
Driving speed(load/unload) | km/h | 7.8/9 |
Lifting speed(load/unload) | mm/s | 230/350 |
Lowering speed(load/unload) | mm/s | 170/150 |
