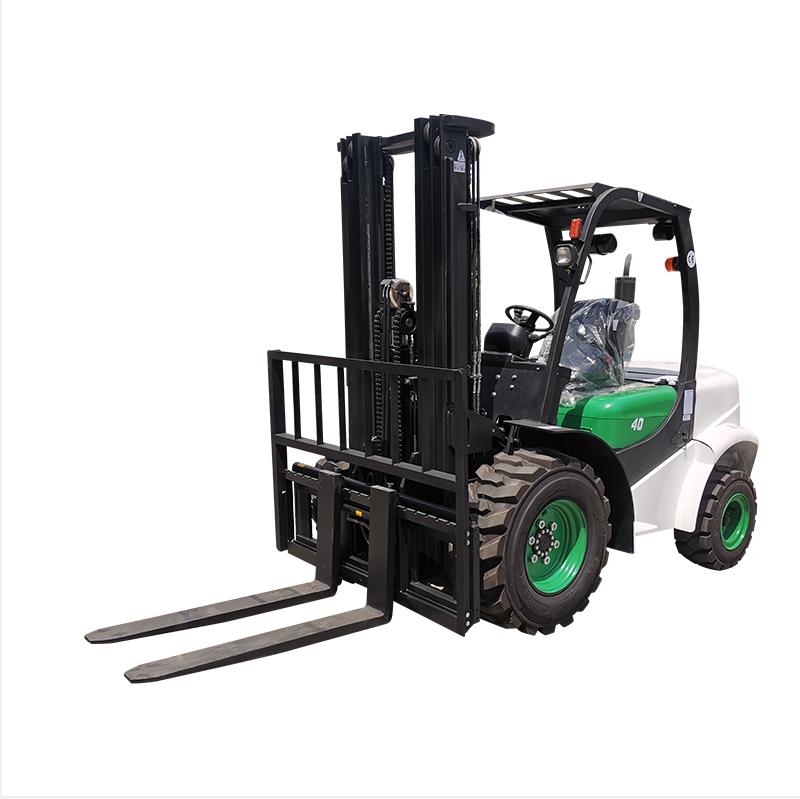

4T Rough Terrain Forklift

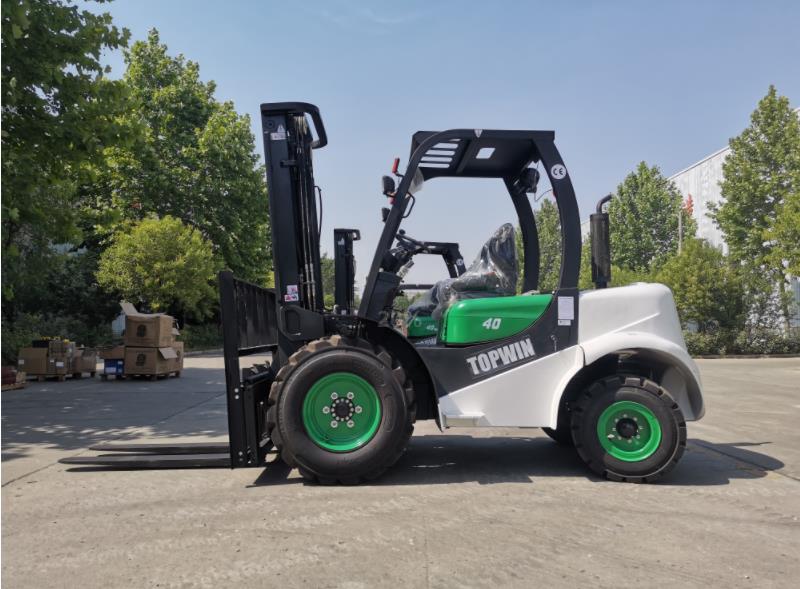

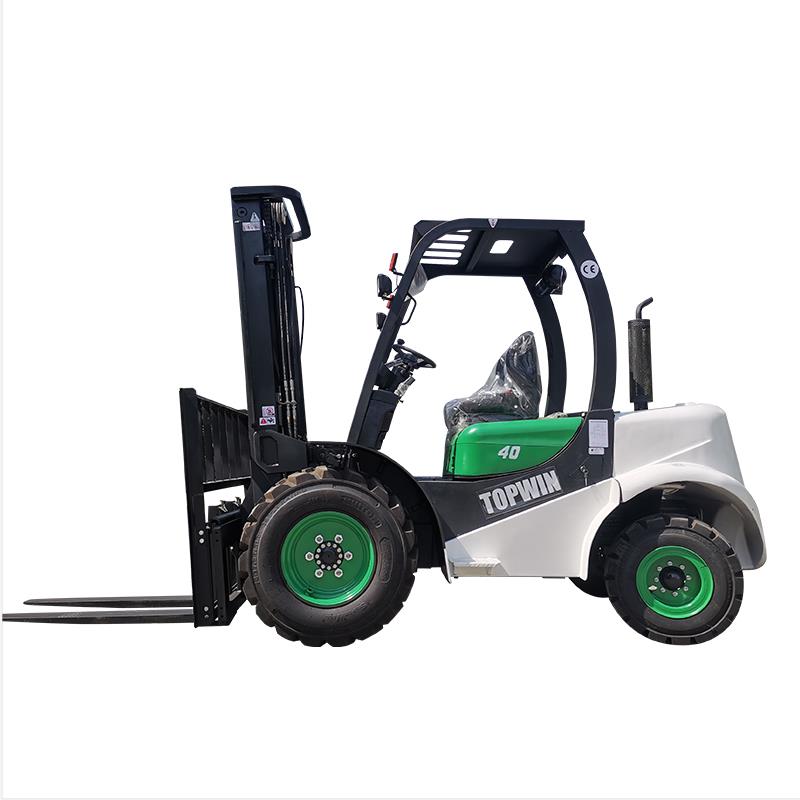

4 Ton Rough Terrain Forklift Truck
3stage 5m Mast,
Hydraulic Transmission,1.22M Fork, Isuzu Engine,
Single Pneumatic Front Wheel,
Seat With Safety Belt & Steady Bar Warning Light
Side Shifter
Topwin Japanese Engine Diesel Three Ton 5t Xcb-T All Terrain Electric Forklift Four Wheel Drive Off Road 4X4 Rough Truck
Topwin Difficult Terrain Forklift Grant Exclusive Japanese Engines ,Such As Yanmar/Mitsubishi/Isuzu/Nissan.We Additionally Have Different Well-Known Engines: Xinchai/Deutz/Gm,Etc.
These Engines Are In Particular Designed For The Forklift Use,With Low Gasoline Consumption,Less Noise And Vibration,All These
Features Enhance The Total Overall Performance Of The Forklift.
Advantages And Highlights:
1, One-Piece Designed Of Suspension Frame.
2, New Water Tank & Cooling System.
3, Larger Operation Space.Optimized Steerage Wheel, Running Take Care Of And Pedals.
4, High-Efficiency Hydraulic System, Decrease Gasoline Consumption.
5, Enhanced Huge View Mast Improves The Work Effectivity And Running Safety.
| Model | FD35 | FD40 |
| Rated Lifting Weight ,Kg | 3500 | 4000 |
| Load Center ,Mm | 500 | 500 |
| Power | Diesel | Diesel |
| Max. Lifting Speed (Full Load) ,Mm∕S | 505/450 | 300 |
| Max. Travel Speed (Full Load/Unload) ,Km/H | 17∕19 | 18∕20 |
| Max. Traction Force (Full Load/Unload), Kn | 16∕11 | 16.5∕11.5 |
| Grade-Ability (Full / No Load) ,% | 15∕20 | 15∕20 |
| H1 Lifting Height ,Mm | 3000 | 3000 |
| Free Lifting Height ,Mm | 80 | 80 |
| Mast Inclination (Α Front / Β Rear), Degree | 6∕12 | 6∕12 |
| Min. Turning Radius ,Mm | 2540 | 2720 |
| Min. Right Angle Channel ,Mm | 2110 | 2320 |
| Min. Ground Clearance ,Mm | 135 | 135 |
| A Overall Length (Including Forks) ,Mm | 4000 | 4100 |
| B Overall Width ,Mm | 1230 | 1230 |
| H Overall Height (Mast Retraction) ,Mm | 2110 | 2110 |
| H2 Overall Height (Full Extension Of Mast) ,Mm | 4270 | 4270 |
| H3 Overhead Guard Height ,Mm | 2110 | 2110 |
| A1 Front Overhang ,Mm | 465 | 470 |
| A2 Wheelbase ,Mm | 1775 | 1900 |
| B1 Wheel Treat Front ,Mm | 1000 | 1060 |
| B2 Wheel Treat Rear ,Mm | 970 | 970 |
| Front Tyre | 28×9-15 | 250-15 |
| Rear Tyre | 6.50-10 | 6.50-10 |
| Weight ,Kg | 4660/4700 | 4900 |
| B3 Fork Width,,Mm | 122 | 150 |
| H4 Fork Thickness ,Mm | 45 | 45 |
| Fork Bracket Height ,Mm | 1225 | 1225 |
| A3 Standard Fork Length ,Mm | 1220 | 1220 |
| Engine | China stage Ⅲ | China stage Ⅲ |
| Rated Power Kw | 36.8 | 36.8 |
| Speed At Rated Power Rpm | 2500 | 2500 |
| Maximum Torque Nm | 157 | 185 |
| Speed At Maximum Torque Rpm | 1800 | 1800 |
| Transmission | Mechanical | Mechanical |
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
