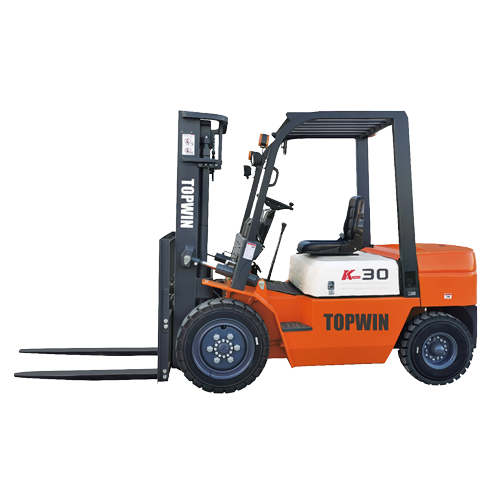

3000Kg Forklift Truck
After-Sales Service/Warranty Period: 18 Months After Bill Of Lading,
12 Months After Sale, 2000 Working Hours,
Whichever Comes First
Professional After-Sales Staff To Provide Services For You

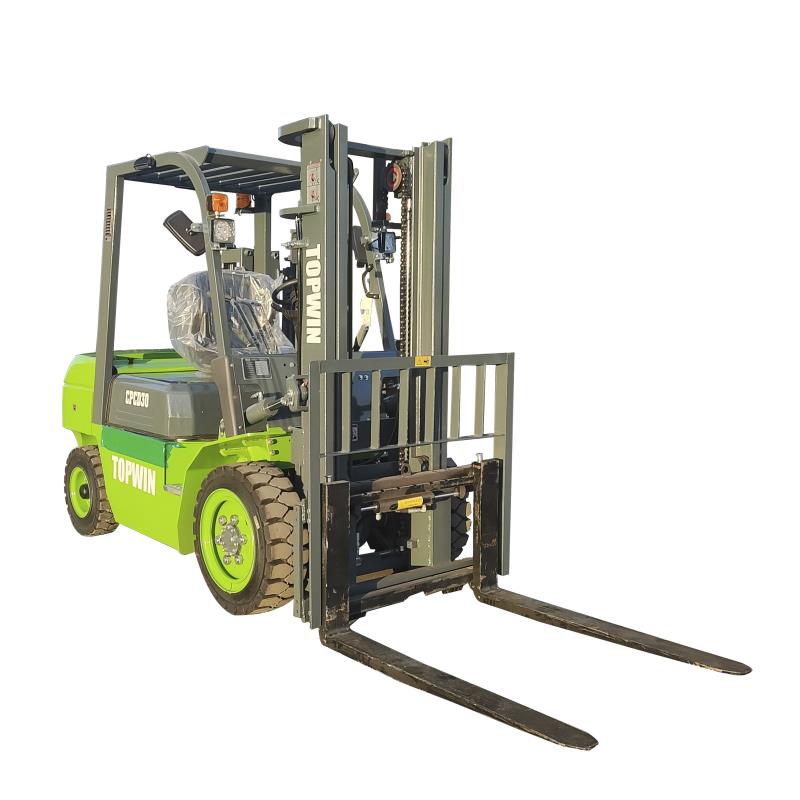

3 Ton Diesel Forklift Description:

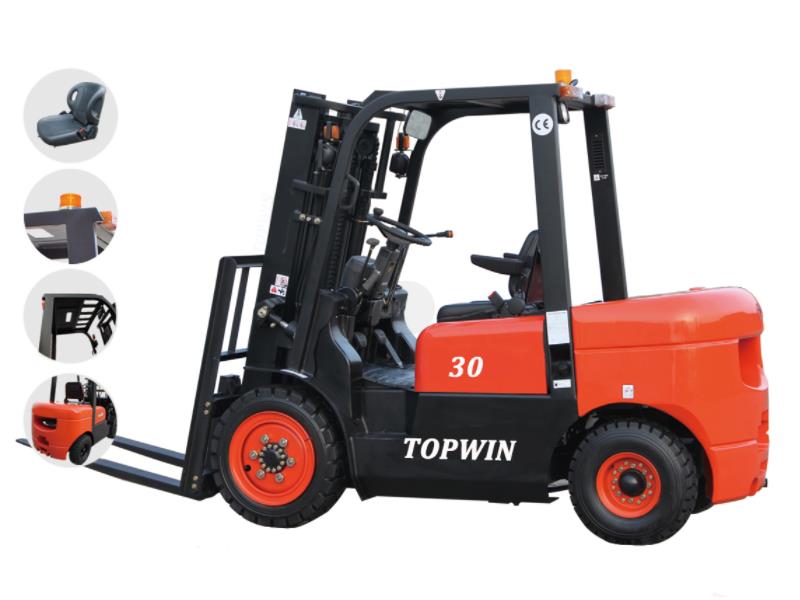

(1) China Xinchai Engine Or Japan Mistubishi Engine;
(2) Auto Electric Hydraulic Transmission By Tcm Technology;
(3) Japan Hydraulic System, By Using Shimadzu Brand Valve And Pump;
(4) Copper Radiator, With Better Heat Radiation;
(5) Waterproof Overhead Guard;
(6) Led Light With Protection Guard;
(7) Tilt-Cylinder Dustproof Protection;
(8) Luxury Fully Suspended Seat With Arm Belt And Safety Belt;
(9) Warning Light;
(10) Triangle Rearview Mirror, Adopt a Convex Mirror To Get a Wider View;
(11) Red/Yellow/Green/Blue Colors For Your Choice;
(12) Standard Duplex 3m Mast.
1. Mast: Triplex Full Free 4m 4.5m 6m 7m Mast
2. Engine: Optional Japan Original Mitsubishi / Yanmar Engine
3. Side Shifter: China Anqing Or Usa Cascade Brand
4. Tires: Double The Front Tires, Stable Tires
5. Attachment: Vip Solution, Block Clamps, Paper Roll Clamps, Bale Clamps
6. Others: Double Air Filter, Vertical Exhaust, Fork Extension, Cab, Fork Positioner

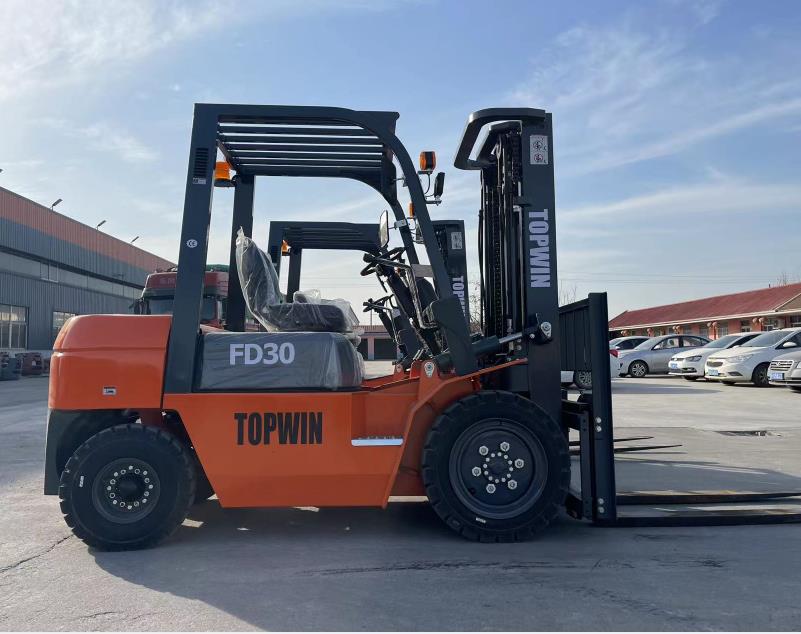

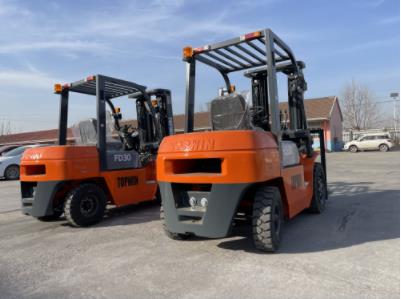

| Model | FD30 |
| Rated Lifting Weight ,Kg | 3000 |
| Load Center ,Mm | 500 |
| Power | Diesel |
| Max. Lifting Speed (Full Load) ,Mm∕S | 505/475 |
| Max. Travel Speed (Full Load/Unload) ,Km/H | 18∕20 |
| Max. Traction Force (Full Load/Unload), Kn | 15.5∕10.5 |
| Grade-Ability (Full / No Load) ,% | 15∕20 |
| H1 Lifting Height ,Mm | 3000 |
| Free Lifting Height ,Mm | 80 |
| Mast Inclination (Α Front / Β Rear), Degree | 6∕12 |
| Min. Turning Radius ,Mm | 2530 |
| Min. Right Angle Channel ,Mm | 2110 |
| Min. Ground Clearance ,Mm | 135 |
| A Overall Length (Including Forks) ,Mm | 3970 |
| B Overall Width ,Mm | 1230 |
| H Overall Height (Mast Retraction) ,Mm | 2110 |
| H2 Overall Height (Full Extension Of Mast) ,Mm | 4270 |
| H3 Overhead Guard Height ,Mm | 2110 |
| A1 Front Overhang ,Mm | 465 |
| A2 Wheelbase ,Mm | 1775 |
| B1 Wheel Treat Front ,Mm | 1000 |
| B2 Wheel Treat Rear ,Mm | 970 |
| Front Tyre | 28×9-15 |
| Rear Tyre | 6.50-10 |
| Weight ,Kg | 4250/4290 |
| B3 Fork Width,,Mm | 122 |
| H4 Fork Thickness ,Mm | 45 |
| Fork Bracket Height ,Mm | 1225 |
| A3 Standard Fork Length ,Mm | 1220 |
| Engine | China stage Ⅲ |
| Rated Power Kw | 36.8 |
| Speed At Rated Power Rpm | 2500 |
| Maximum Torque Nm | 157 |
| Speed At Maximum Torque Rpm | 1800 |
| Transmission | Mechanical |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
