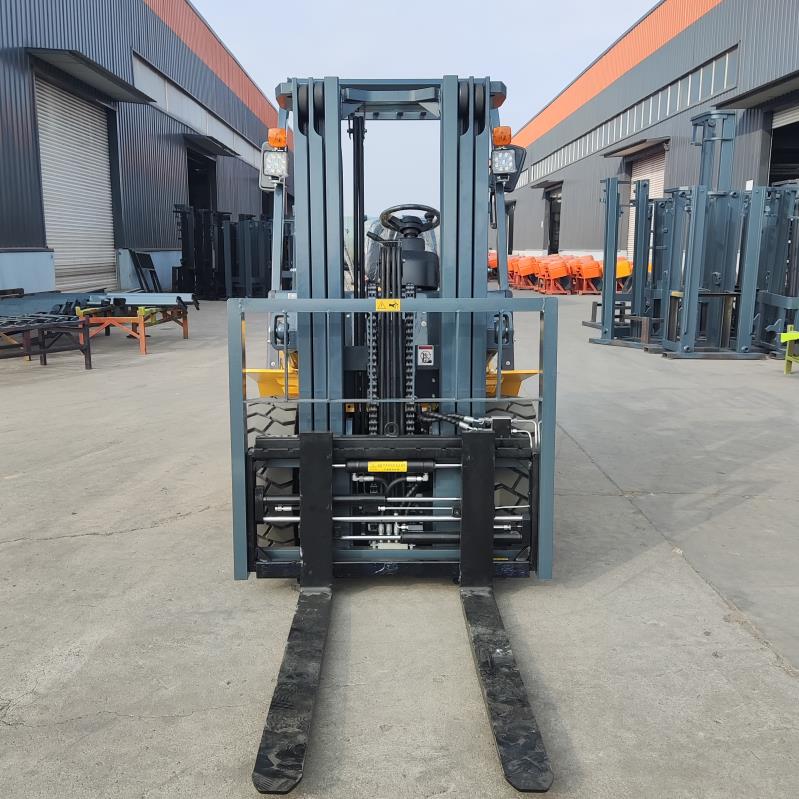

2.5 Ton Diesel Forklift
Engine：China Xinchai Engine/Japan Mitsubishi & Isuz Engine
Transmission：Auto/Manual Hand/Machinery
Lifting Height：3000-6000mm
Mast：Standard Duplex/Duples Full Free Lift/Triplex Full Free Lift
Tire：Pneumatic Tire/Solid Tire/Double Front Tire/Off Road Tire
Product Details
Overhead Guard：Gird Type/Water-Proof Type
Light：Front Lamp/Rear Lamp/Truning Linght/Combination Light
Mirror：Left And Right Mirror/Rearview Mirror/Wide View Mirror
Seat：Standard Seat/ Seat With Belt/Seat With Arm/Suspension Seat
Fork Length：920mm/1070mm/1220mm/1570mm Ect
Color：Green/Yellow/Red/Customer Customized
Certificat：Ce &Iso &Epa
| Model | FD25 |
| Rated Lifting Weight ,Kg | 2500 |
| Load Center ,Mm | 500 |
| Power | Diesel |
| Max. Lifting Speed (Full Load) ,Mm∕S | 400 |
| Max. Travel Speed (Full Load/Unload) ,Km/H | 17∕19 |
| Max. Traction Force (Full Load/Unload), Kn | 15∕10 |
| Grade-Ability (Full / No Load) ,% | 15∕20 |
| H1 Lifting Height ,Mm | 3000 |
| Free Lifting Height ,Mm | 60 |
| Mast Inclination (Α Front / Β Rear), Degree | 6∕12 |
| Min. Turning Radius ,Mm | 2450 |
| Min. Right Angle Channel ,Mm | 2050 |
| Min. Ground Clearance ,Mm | 110 |
| A Overall Length (Including Forks) ,Mm | 3605 |
| B Overall Width ,Mm | 1160 |
| H Overall Height (Mast Retraction) ,Mm | 2095 |
| H2 Overall Height (Full Extension Of Mast) ,Mm | 4080 |
| H3 Overhead Guard Height ,Mm | 2095 |
| A1 Front Overhang ,Mm | 451 |
| A2 Wheelbase ,Mm | 1640 |
| B1 Wheel Treat Front ,Mm | 970 |
| B2 Wheel Treat Rear ,Mm | 970 |
| Front Tyre | 7.00-12 |
| Rear Tyre | 6.00-9 |
| Weight ,Kg | 3600 |
| B3 Fork Width,,Mm | 122 |
| H4 Fork Thickness ,Mm | 40 |
| Fork Bracket Height ,Mm | 1000 |
| A3 Standard Fork Length ,Mm | 1070 |
| Engine | China stage Ⅲ |
| Rated Power Kw | 36.8 |
| Speed At Rated Power Rpm | 2500 |
| Maximum Torque Nm | 157 |
| Speed At Maximum Torque Rpm | 1800 |
| Transmission | Mechanical |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
