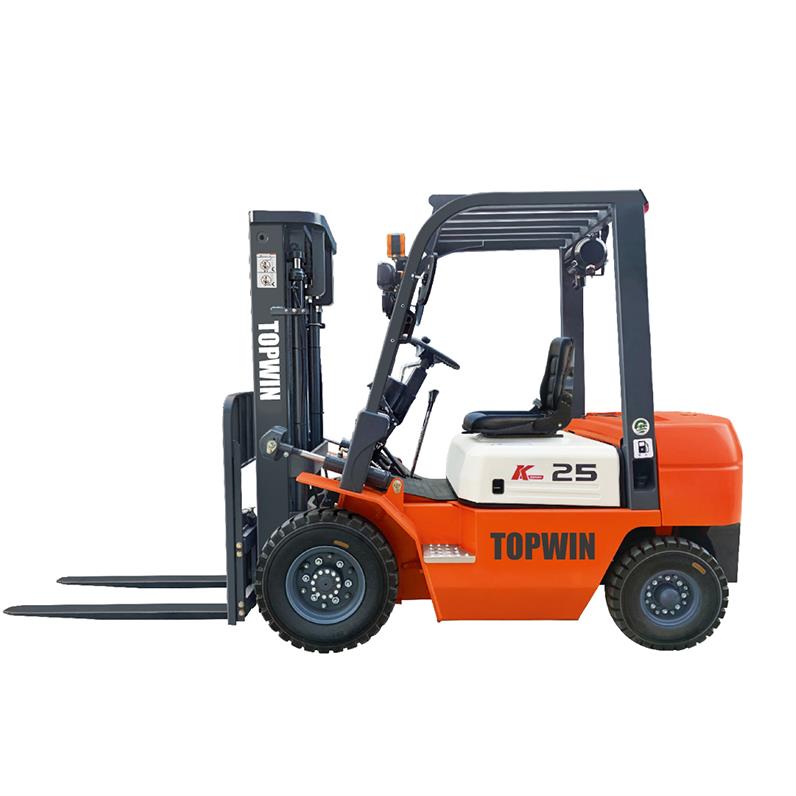

2500 Kg Diesel Forklift
To Guarantee Every Diesel Forklift Customer Has a Good Forklift Using Feeling And Longer Using Life,
We Send Some Spare Parts For Free With Every Forklift Delivery,
Eg: Filters, Seal And Related.
1. China C490 Engine Or Japanese Engine;
2. Auto Electric Powered Hydraulic Transmisson By Way Of Tcm Technology;
3. Japan Hydraulic System, With The Aid Of The Use Of Shimadzu Company Valve And Pump;
4. Copper Radiator, With Higher Warmth Radiation;
5. Waterproof Overhead Guard;
6. Led Light With Safety Guard;
7. Tilt-Cylinder Dustproof Protection;
8. Luxury Thoroughly Suspended Seat With Armbelt And Security Belt;
9. Warning Light;
10. Triangle Rearview Mirror, Undertake a Convex Replicate To Get a Wider View;
11. Red/Yellow/Green/Blue Colorings For Your Choice;
12. Standard Duplex 3m Mast.
| Model | FD25 |
| Rated Lifting Weight ,Kg | 2500 |
| Load Center ,Mm | 500 |
| Power | Diesel |
| Max. Lifting Speed (Full Load) ,Mm∕S | 400 |
| Max. Travel Speed (Full Load/Unload) ,Km/H | 17∕19 |
| Max. Traction Force (Full Load/Unload), Kn | 15∕10 |
| Grade-Ability (Full / No Load) ,% | 15∕20 |
| H1 Lifting Height ,Mm | 3000 |
| Free Lifting Height ,Mm | 60 |
| Mast Inclination (Α Front / Β Rear), Degree | 6∕12 |
| Min. Turning Radius ,Mm | 2450 |
| Min. Right Angle Channel ,Mm | 2050 |
| Min. Ground Clearance ,Mm | 110 |
| A Overall Length (Including Forks) ,Mm | 3605 |
| B Overall Width ,Mm | 1160 |
| H Overall Height (Mast Retraction) ,Mm | 2095 |
| H2 Overall Height (Full Extension Of Mast) ,Mm | 4080 |
| H3 Overhead Guard Height ,Mm | 2095 |
| A1 Front Overhang ,Mm | 451 |
| A2 Wheelbase ,Mm | 1640 |
| B1 Wheel Treat Front ,Mm | 970 |
| B2 Wheel Treat Rear ,Mm | 970 |
| Front Tyre | 7.00-12 |
| Rear Tyre | 6.00-9 |
| Weight ,Kg | 3600 |
| B3 Fork Width,,Mm | 122 |
| H4 Fork Thickness ,Mm | 40 |
| Fork Bracket Height ,Mm | 1000 |
| A3 Standard Fork Length ,Mm | 1070 |
| Engine | China stage Ⅲ |
| Rated Power Kw | 36.8 |
| Speed At Rated Power Rpm | 2500 |
| Maximum Torque Nm | 157 |
| Speed At Maximum Torque Rpm | 1800 |
| Transmission | Mechanical |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
