Small Excavator With Grapple
TOPWIN Hydraulic Pump Is a Pure Forged Iron Pump,
Which Is Extra Wear-Resistant Than Aluminous Pump Beneath The 3600 Rpm Engine Excessive Speed.
All Hydraulic Pipes Undertake High-Quality German Imported Pipes
Product Details
For Rubber Tune Which Makes Use Of Jin Lilong/Yuanchuang Brand, a Familiar Crawler Company In China .

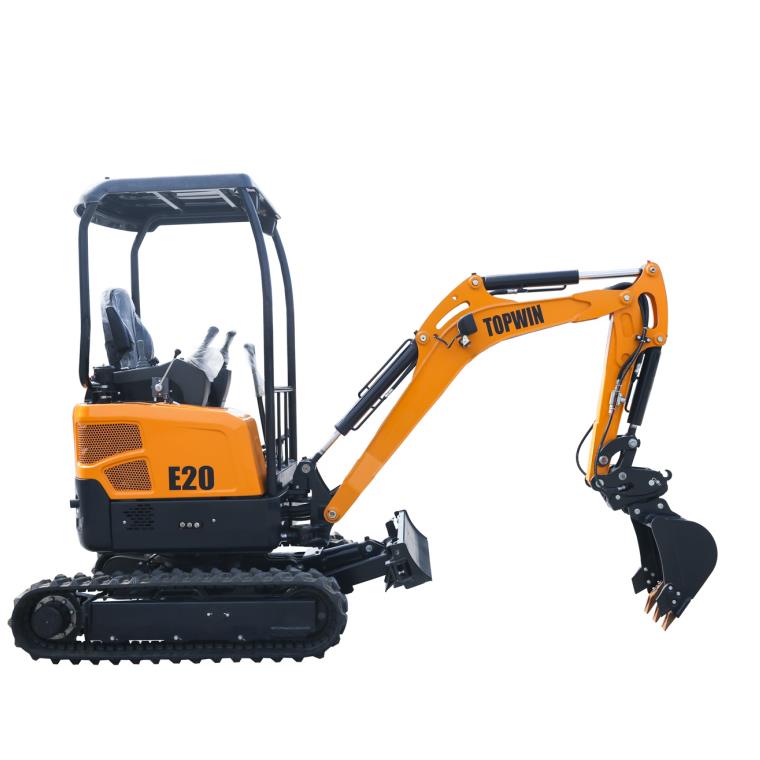

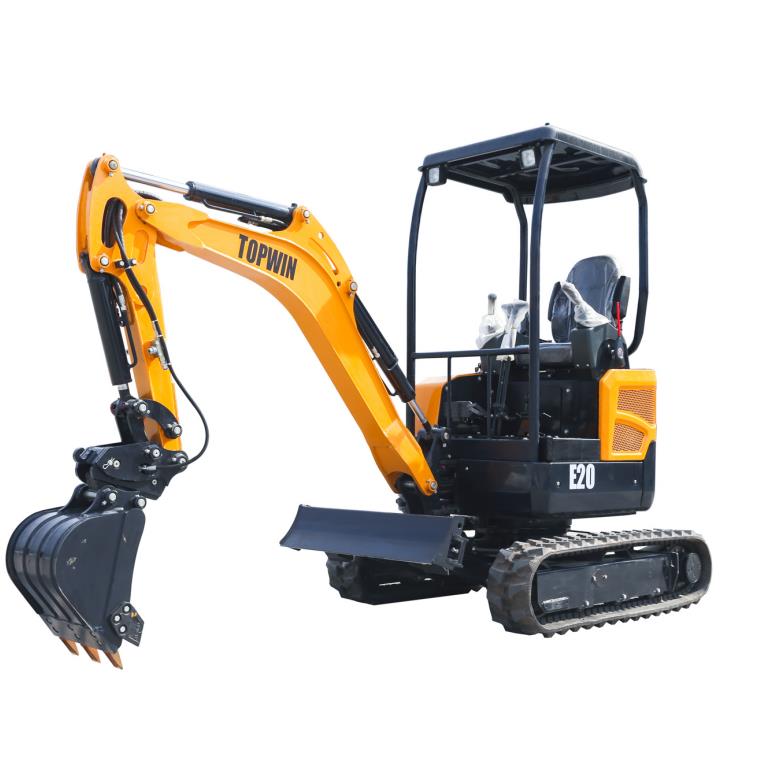

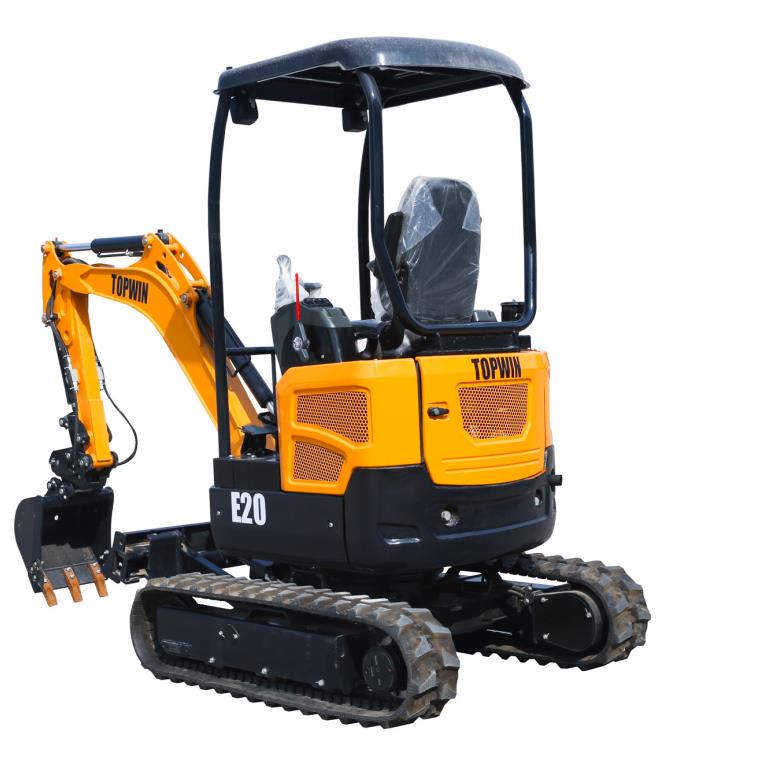

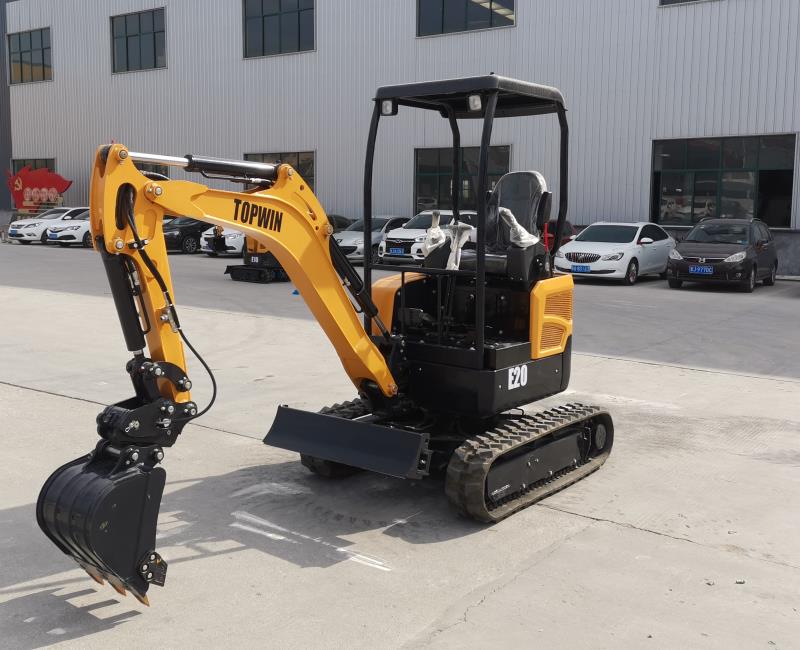

French Enterprise Layout Standards And Factors Are Introduced E20 Micro Excavator Can Additionally Be Used With a Range Of Accessories, Such As Grabble, Auger, Simple Bucket, Ripper, Rake, Trailer, Etc.
We Trust It Will Turn Out To Be Your Correct Helper.
| Model | TWE20 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | KUBOTA D1105 |
| Power /Rotation speed | 14.1kw(20HP)@2000rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 4km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Number of track shoe per side(steel track only) | 38pcs |
| Number of upper roller per side | 1 |
| Number of bottom roller per side | 3 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.07m³ |
| Swing speed | 9 rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 18KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 21.5Mpa |
| Machine weight | 2000kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3555mm*990mm/1300mm*2290mm |
| Axle base/Track length on ground | 1230mm |
| Track gauge | 760mm |
| Minimum Ground clearance | 150mm |
| Swing radius at tail | 650mm |
| WORKING RANGE | |
| Maximum Digging height | 3700mm |
| Maximum Dumping height | 2440mm |
| Maximum Digging depth | 2400mm |
| Maximum Vertical digging depth | 2025mm |
| Maximum Digging radius | 4040mm |
| Minimum swing radius | 1610mm |
| Maximum Lifting height of blade | 240mm |
| Maximum Cutting depth of blade | 270mm |
| Boom swing angle(Left/Right) | 75°/45° |
| Shipping method | 4 units in 20GP container 8 units in 40GP container |
| Model | TWE20 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | KUBOTA D1105 |
| Power /Rotation speed | 14.1kw(20HP)@2000rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 4km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Number of track shoe per side(steel track only) | 38pcs |
| Number of upper roller per side | 1 |
| Number of bottom roller per side | 3 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.07m³ |
| Swing speed | 9 rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 18KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 21.5Mpa |
| Machine weight | 2000kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3555mm*990mm/1300mm*2290mm |
| Axle base/Track length on ground | 1230mm |
| Track gauge | 760mm |
| Minimum Ground clearance | 150mm |
| Swing radius at tail | 650mm |
| WORKING RANGE | |
| Maximum Digging height | 3700mm |
| Maximum Dumping height | 2440mm |
| Maximum Digging depth | 2400mm |
| Maximum Vertical digging depth | 2025mm |
| Maximum Digging radius | 4040mm |
| Minimum swing radius | 1610mm |
| Maximum Lifting height of blade | 240mm |
| Maximum Cutting depth of blade | 270mm |
| Boom swing angle(Left/Right) | 75°/45° |
| Shipping method | 4 units in 20GP container 8 units in 40GP container |
