Mini Digger Cost

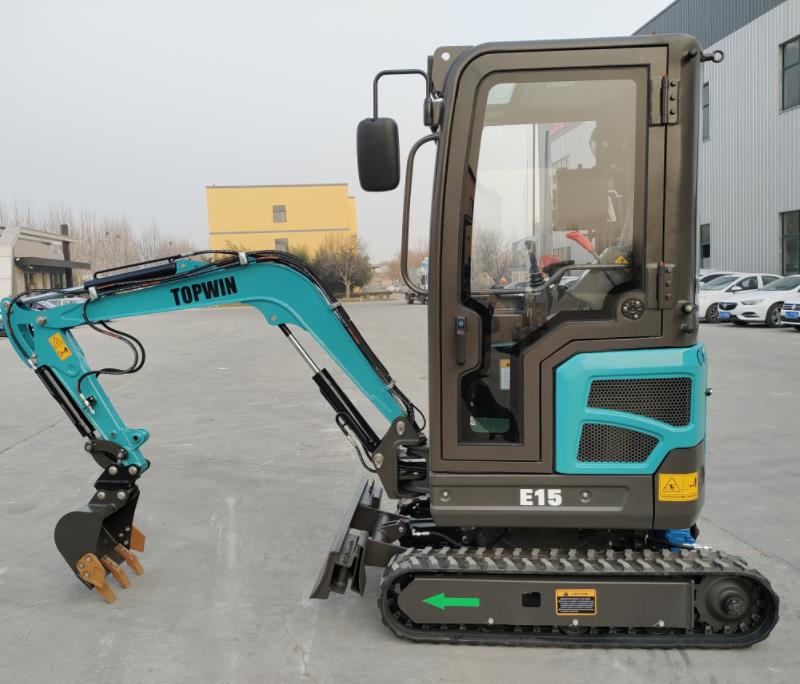

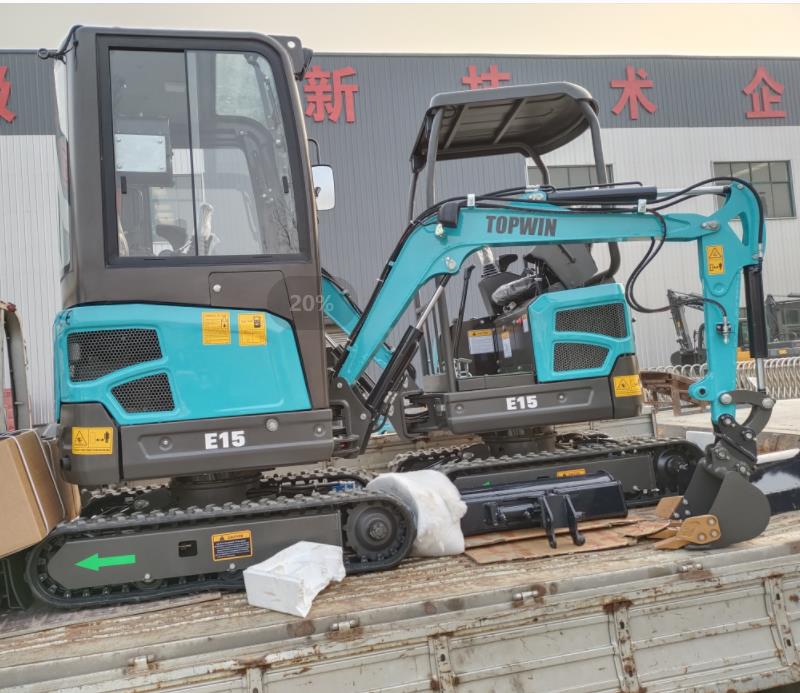

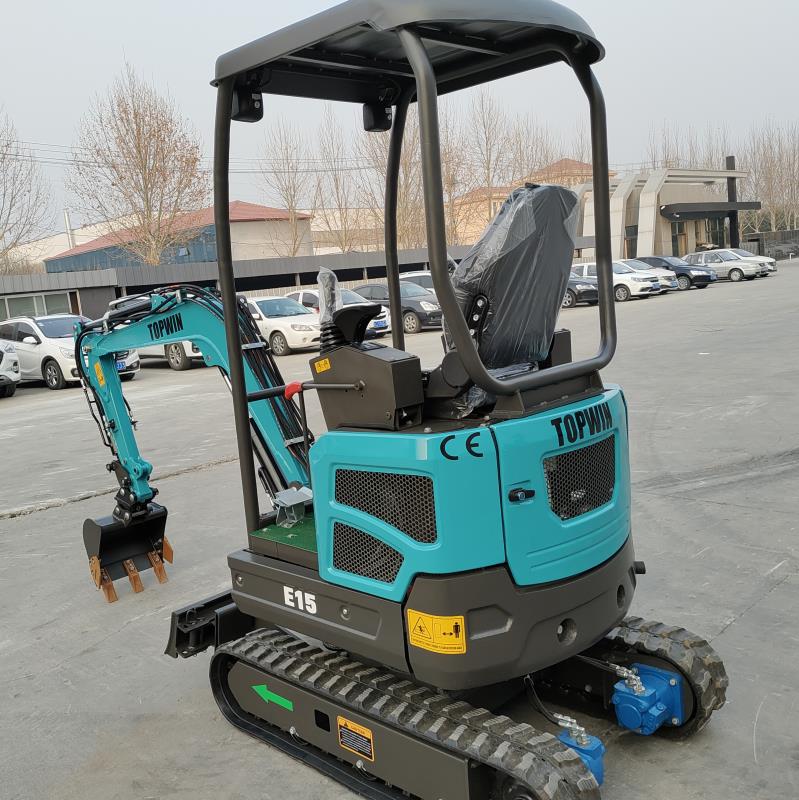

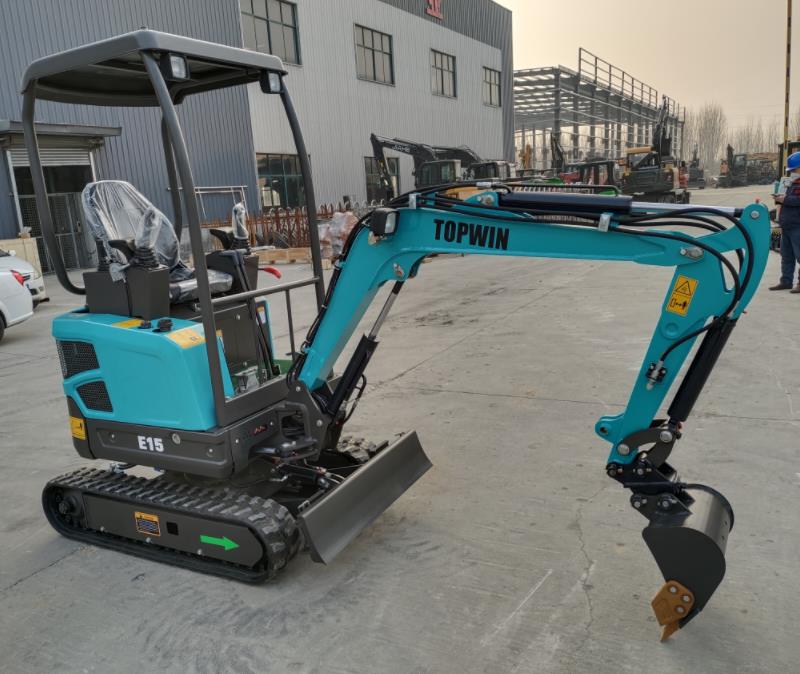

1.5ton Mini Excavators Ce With Breaking Hammer
And Support Multi-Function Operation,
Fast Attachment Of Accessories,
Excavation, Crushing, Trench Cleaning,
Drilling And Bulldozing;
What We Offer:
1. Products of Mini Excavators from 0.8 ton to 6 ton, giant excavators, backhoe excavators etc.
2. Service of pre-sale, middle-sale and after-sale all-around service.
3. Traning of laptop operation, day by day maintenance.
4. Technical aid for any hassle capturing with our machines.
5. OEM/ODM carrier for excavator wholesalers/trading companies/distributors/local agents.
Available Options:
1. Products: Rubber or metal track, open cover or closed cabin, AC or no, swing increase or no, mechanical or hydraulic control, retractable chassis, high-low double velocity etc.
2. Attached Tools: Breaking hammer, Drilling Auger, Ripper, Rake, Narrow Bucket, Wide Bucket, Tilting Bucket, Thumb,Grapple etc.
1、What Are The Blessings Of Our Mini Excavator?
Advantages Of Mini Excavator: Assist Multi-Function Operation, Quick Attachment Of Accessories, Excavation, Crushing, Trench Cleaning, Drilling And Bulldozing;
Warranty Period: Within One Yr After Transport / 2000 Working Hours, If There Is Any First-Rate Problem, We Will Supply You With Add-Ons For Free.
2、The Trendy Configuration Notice: Mini Excavators Can Extend The Cab And Air Conditioning! ! !
Provide Personalized Services, Your Distinct Purchasing Agent, Personalised Purchase, You Are Born Specific From Others!
| Model | TWE15 |
| ENGINE | Euro 5,EPA4 |
| Emission Standard | KUBOTA /D722 or D782 |
| Make /Model | KUBOTA /D722 or D782 |
| Power /Rotation speed | 10.2kw or 11.2kW @2500rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 2.1km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Number of track shoe per side(steel track only) | 38 pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.025m³ |
| Swing speed | 12~13rpm |
| Maximum Grade ability | 58%(30°) |
| Maximum Bucket digging force | 14KN |
| Maximum Arm digging force | 10KN |
| Hydraulic system pressure | 20Mpa |
| Machine weight | 1480kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3329mm*990/1300mm*2267mm |
| Axle base/Track length on ground | 1230mm |
| Track gauge | 820mm |
| Minimum Ground clearance | 210mm |
| Swing radius at tail | 1125mm |
| WORKING RANGE | |
| Maximum Digging height | 3365mm |
| Maximum Dumping height | 2385mm |
| Maximum Digging depth | 2050mm |
| Maximum Vertical digging depth | 1725mm |
| Maximum Digging radius | 3860mm |
| Minimum swing radius | 1720mm |
| Maximum Lifting height of blade | 230mm |
| Maximum Cutting depth of blade | 275mm |
| Boom swing angle(Left/Right) | 75°/45° |
| Shipping method | 4 units in 20GP container 8 units in 40GP container |
| Model | TWE18 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | LAIDONG,CHINA 3TE25 |
| Power /Rotation speed | 18.4kw(25HP)@2350rpm |
| Number of cylinder | 3 |
| TRACK SYSTEM | |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Number of track shoe per side(steel track only) | 38 pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.06m³ |
| Swing speed | 10~12 rpm |
| Maximum Grade ability | 35° |
| Maximum Bucket digging force | 14KN |
| Maximum Arm digging force | 10KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 1780kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 3865mm*1050mm*2270mm |
| Axle base/Track length on ground | 1230mm |
| Track gauge | 820mm |
| Minimum Ground clearance | 210mm |
| Swing radius at tail | 1125mm |
| WORKING RANGE | |
| Maximum Digging height | 3365mm |
| Maximum Dumping height | 2385mm |
| Maximum Digging depth | 2050mm |
| Maximum Vertical digging depth | 1725mm |
| Maximum Digging radius | 3860mm |
| Minimum swing radius | 1720mm |
| Maximum Lifting height of blade | 230mm |
| Maximum Cutting depth of blade | 275mm |
| Boom swing angle(Left/Right) | 75°/45° |
| Shipping method | 4 units in 20GP container 8 units in 40GP container |
