Farm 1Ton Excavator For Sale
Mini Excavator With Tailless Small Wing Shape And Boom-Side-Shift Option, Which Can Be Used For Narrow-Space Operation Tailless Rotation, Retractable Chassis,Deflective Boom, First-Rate Configuration, Load Touchy System, Changeable
Rubbertrack,Environmental Safety Standard.
Product Details

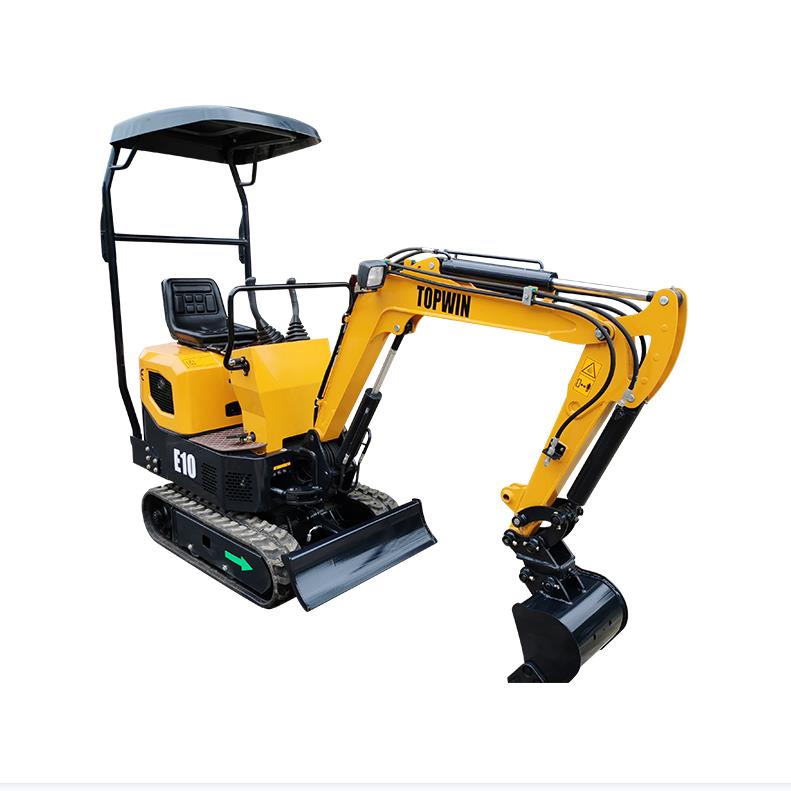

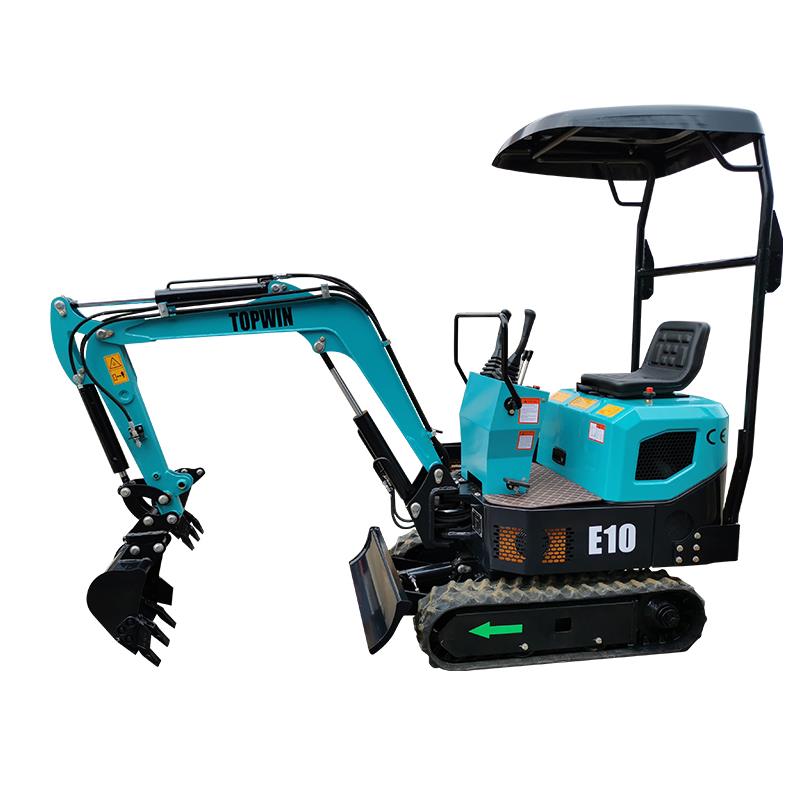

TOPWIN Mini Excavator Solely 1000kgs In Weight And 770mm Wide.
Comes With 200mm,400mm And 600mm Buckets And a Grapple.
Plus a Ripper And Solar Canopy!Perfect For Trenching Work,Digging Out Backyard Beds,
Lifting Logs To Reduce For Firewood Or Digging Holes To Plant Trees,
The Listing Of Jobs Is Endless.
| Model | TWE10 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | KOOP( KD192F-1) |
| Power /Rotation speed | 7kw/3000rpm |
| Number of cylinder | 1 |
| TRACK SYSTEM | |
| Maximum Travel speed | 1.9km/h |
| Width of track shoe(Rubber &steel track) | 180mm |
| Number of track shoe per side(steel track only) | |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 2 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.023m³ |
| Swing speed | 13 r/min |
| Maximum Grade ability | 58%(30°) |
| Maximum Bucket digging force | 7.2 KN |
| Maximum Arm digging force | 4.6 KN |
| Hydraulic system pressure | 16MPa |
| Machine weight | 920kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 2840mm*880mm*2220mm |
| Axle base/Track length on ground | 1233mm |
| Track gauge | 660mm |
| Minimum Ground clearance | 132mm |
| Swing radius at tail | 800mm |
| WORKING RANGE | |
| Maximum Digging height | 2600mm |
| Maximum Dumping height | 1830mm |
| Maximum Digging depth | 1715mm |
| Maximum Vertical digging depth | 1590mm |
| Maximum Digging radius | 3065mm |
| Minimum swing radius | 1480mm |
| Maximum Lifting height of blade | |
| Maximum Cutting depth of blade | |
| Boom swing angle(Left/Right) | |
| Shipping method | 6 units in 20GP container 24units in 40GP container |
| Model | TWE10 |
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | KOOP( KD192F-1) |
| Power /Rotation speed | 7kw/3000rpm |
| Number of cylinder | 1 |
| TRACK SYSTEM | |
| Maximum Travel speed | 1.9km/h |
| Width of track shoe(Rubber &steel track) | 180mm |
| Number of track shoe per side(steel track only) | |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 2 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.023m³ |
| Swing speed | 13 r/min |
| Maximum Grade ability | 58%(30°) |
| Maximum Bucket digging force | 7.2 KN |
| Maximum Arm digging force | 4.6 KN |
| Hydraulic system pressure | 16MPa |
| Machine weight | 920kg |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 2840mm*880mm*2220mm |
| Axle base/Track length on ground | 1233mm |
| Track gauge | 660mm |
| Minimum Ground clearance | 132mm |
| Swing radius at tail | 800mm |
| WORKING RANGE | |
| Maximum Digging height | 2600mm |
| Maximum Dumping height | 1830mm |
| Maximum Digging depth | 1715mm |
| Maximum Vertical digging depth | 1590mm |
| Maximum Digging radius | 3065mm |
| Minimum swing radius | 1480mm |
| Maximum Lifting height of blade | |
| Maximum Cutting depth of blade | |
| Boom swing angle(Left/Right) | |
| Shipping method | 6 units in 20GP container 24units in 40GP container |
