Industrial Forklift
1. Lead-Acid Battery,Maintenance-Free Battery,Lithium Battery Is Optional
2. Standard 2-Stages 3000mm Mast, Non-Compulsory Container Mast,3-Stages 4500mm,5000mm 5500mm 6000mm Mast And Others;
4. Standard 1220mm Fork, Non-Compulsory 1370mm, 1520mm, 1670mm And1820mm Forks;
5. Optional Facet Shifter, Fork Positioner And Different Attachments;
6. Standard Stable Tires, Optionally Available Pneumatic Tires .
Electric Forklifts Are a Quiet, Environmentally Friendly Means Of Handling a Wide Range Of Unit Loads Including Pallets,
Pallet Boxes And Stillages, Giving You a Comprehensive Choice For Any Application.
Topwin Forklift Adopts The Streamline Design That Makes The Appearance More Pleasing,
Using Domestic Well-Known Engine Brand Which Is Powerful, Dependable, Easy To Service ,
And With Low Emissions And Fuel Consumption.Our Forklift Can Reduce Your Cost,
Provide Greater Productivity And Profitability For You.

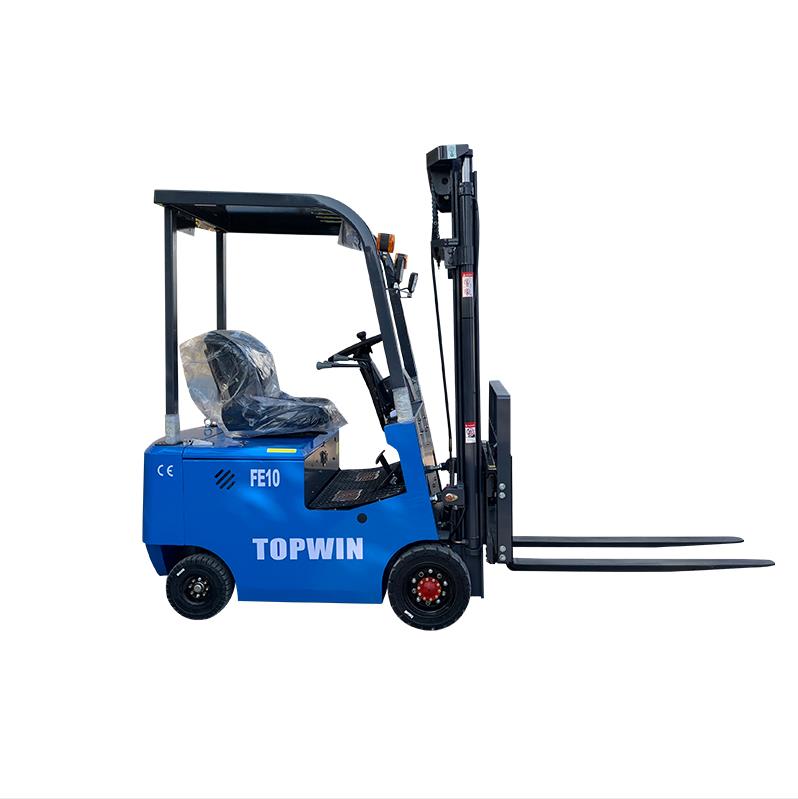

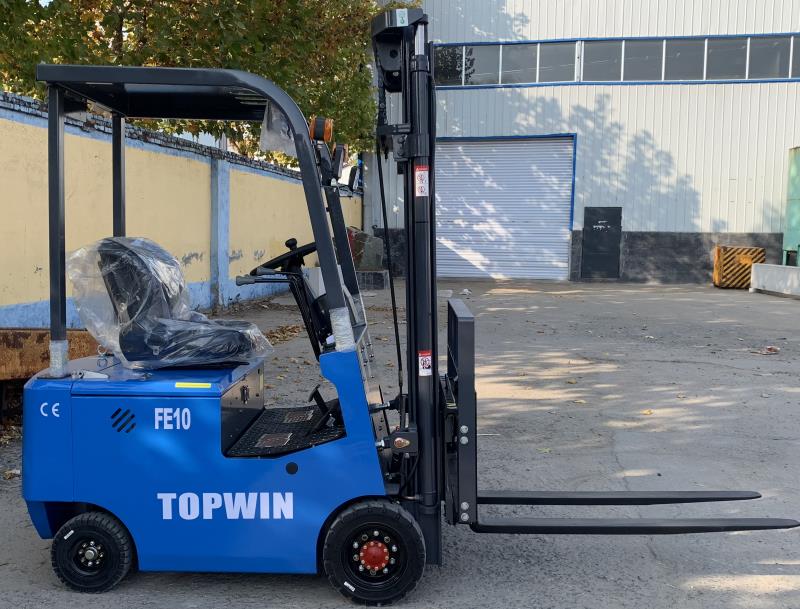

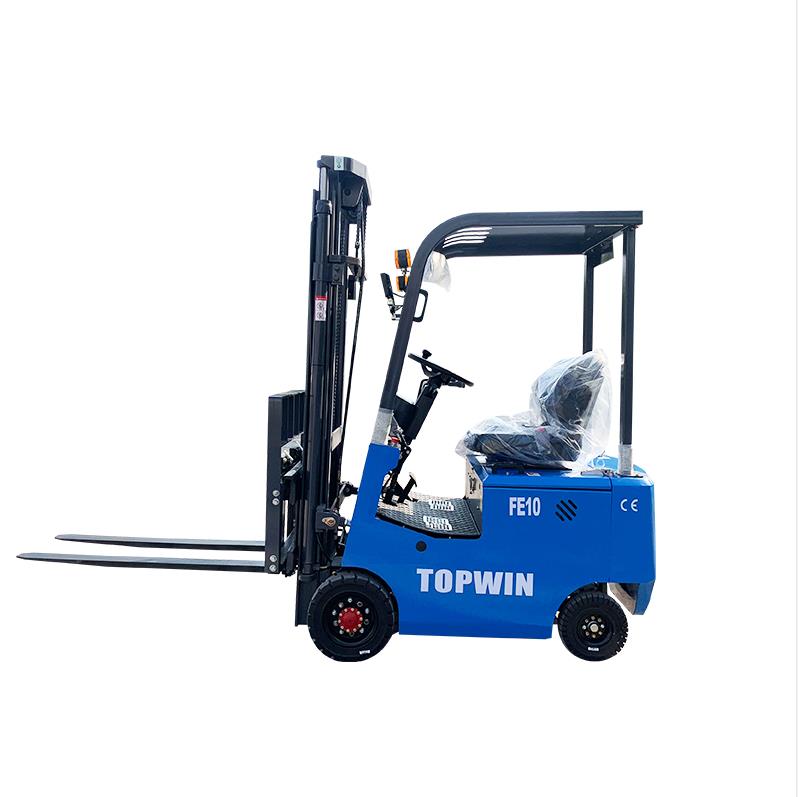

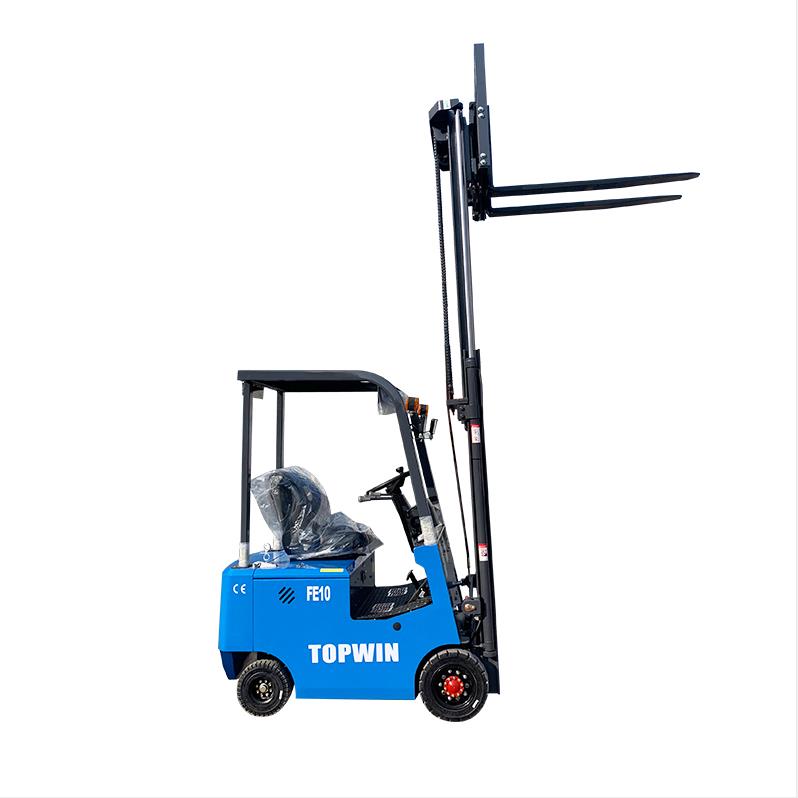

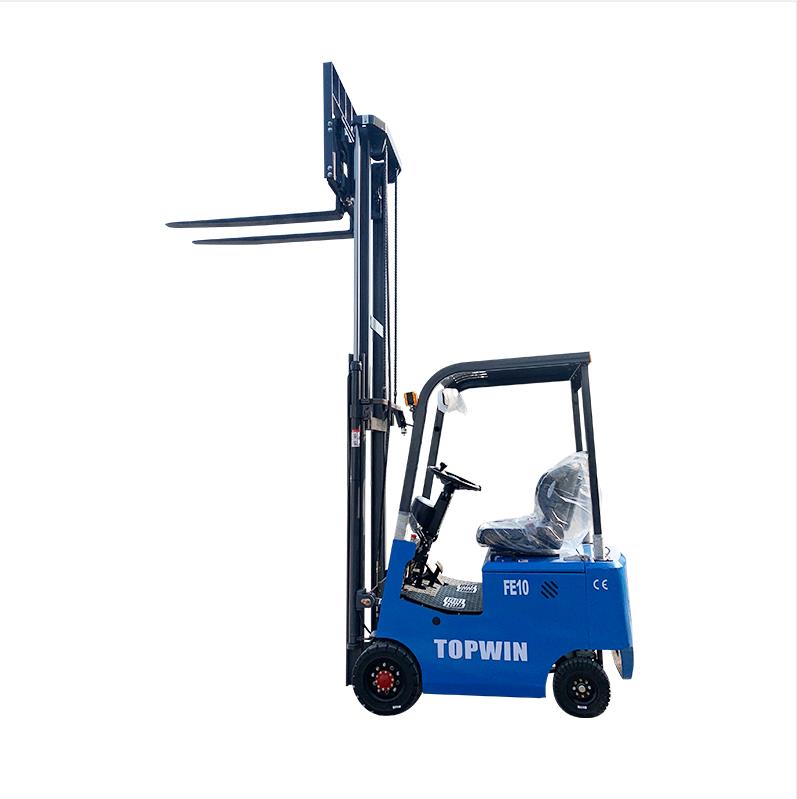

| Model | FE10 | |
| Power type | Battery | |
| Rated load | 1000kg | |
| Load center distance | 400mm | |
| Driving type | seat | |
| Length | With fork | 2592mm |
| Without fork | 1652mm | |
| Whole Width | 940mm | |
| Height | Mast lowered height | 2040mm |
| Overhead guard height | 1950mm | |
| Max working Height | 3820mm | |
| Distance from seat to top light | 970mm | |
| Wheel base | 1020mm | |
| Front overhang | 327mm | |
| Back overhang | 3130mm | |
| Front wheel tread | 840mm | |
| Back wheel tread | 741mm | |
| Min Floor clearance | 90mm | |
| Max lifting height | 3000mm | |
| Free lifting height | 0mm | |
| Fork changing | 820/190 | |
| Min Turning radius | 1800 | |
| Min Right angle aisle width | 2000 | |
| Tilt angle a/β | 6°/12° | |
| Max lifting speed without goods | 250mm/s | |
| Max lifting speed with full goods | 220mm/s | |
| Max speed without goods | 12km/h | |
| Max speed with full goods | 11km/h | |
| Max climbing angle | ≤10 | |
| Whole weight | 1650kg | |
| Driving Wheel | 2x/2 | |
| Tyre model | Solid tyre | |
| Front Tyre | 15x4 1/2-8 | |
| Rear Tyre | 3.50-5 | |
| Hand Brake | Hydraulic Pedal | |
| Brake type | M-Hand | |
| Battery Volt/ capacity | 2X24V/160 | |
| Driving motor power | 4.0AC | |
| pump power | 4.0DC | |
Details
| General | Model | FD25 | |
| Rated capacity | kg | 2500 | |
| Load center | mm | 500 | |
| Power type | Diesel | ||
| Transmission | Hydraulic/Mechanical | ||
| Dimensions | Lifting height | mm | 3000 |
| Free lifting height | mm | 60 | |
| Turning radius | mm | 2450 | |
| Overall length | mm | 3605 | |
| Overall width | mm | 1160 | |
| Overall height (mast lowered) | mm | 2095 | |
| Overall height (mast raised) | mm | 4080 | |
| Overall height (overhead guard) | mm | 2095 | |
| Fork length | mm | 1070 | |
| Fork width | mm | 122 | |
| Fork thickness | mm | 40 | |
| Performance | Max. driving speed (with/without load) | km/h | 17/19 |
| Max. lifting speed (with load) | mm/s | 400 | |
| Max. traction (with/without load) | kn | 15/10 | |
| Gradeability (with/without load) | % | 15/20 | |
| Tilting angles (forward/backward) | ° | 6/12 | |
| Service weight | kg | 3600 | |
| Engine | Engine model | 490BPG | |
| Power | kw | 37 | |
| Rated speed | rpm | 2500 | |
| Wheel | Front overhang | mm | 451 |
| Wheel base | mm | 1640 | |
| Front tread | mm | 970 | |
| Rear tread | mm | 970 | |
| Front tire | 7.00-12 | ||
| Rear tire | 6.00-9 |
